DPF | FAP Smart 230 V

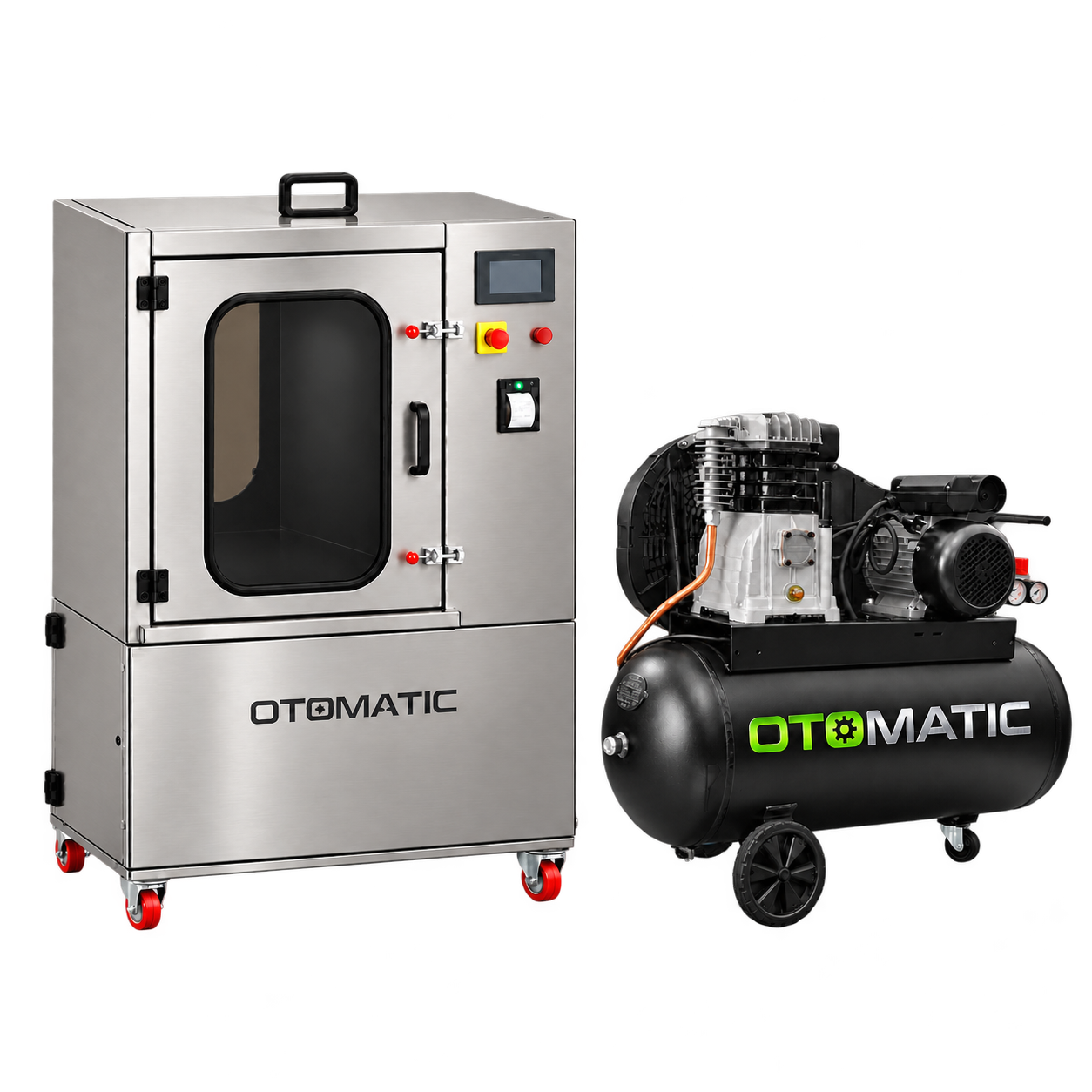

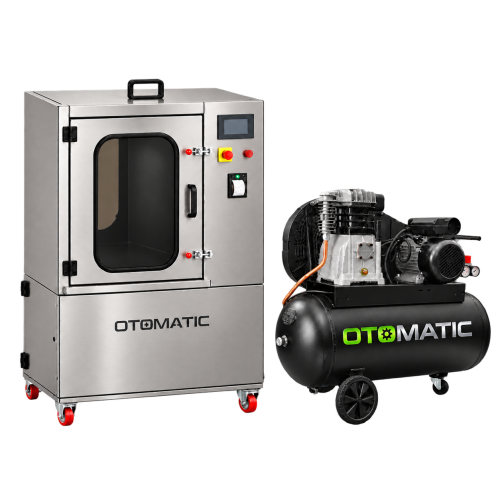

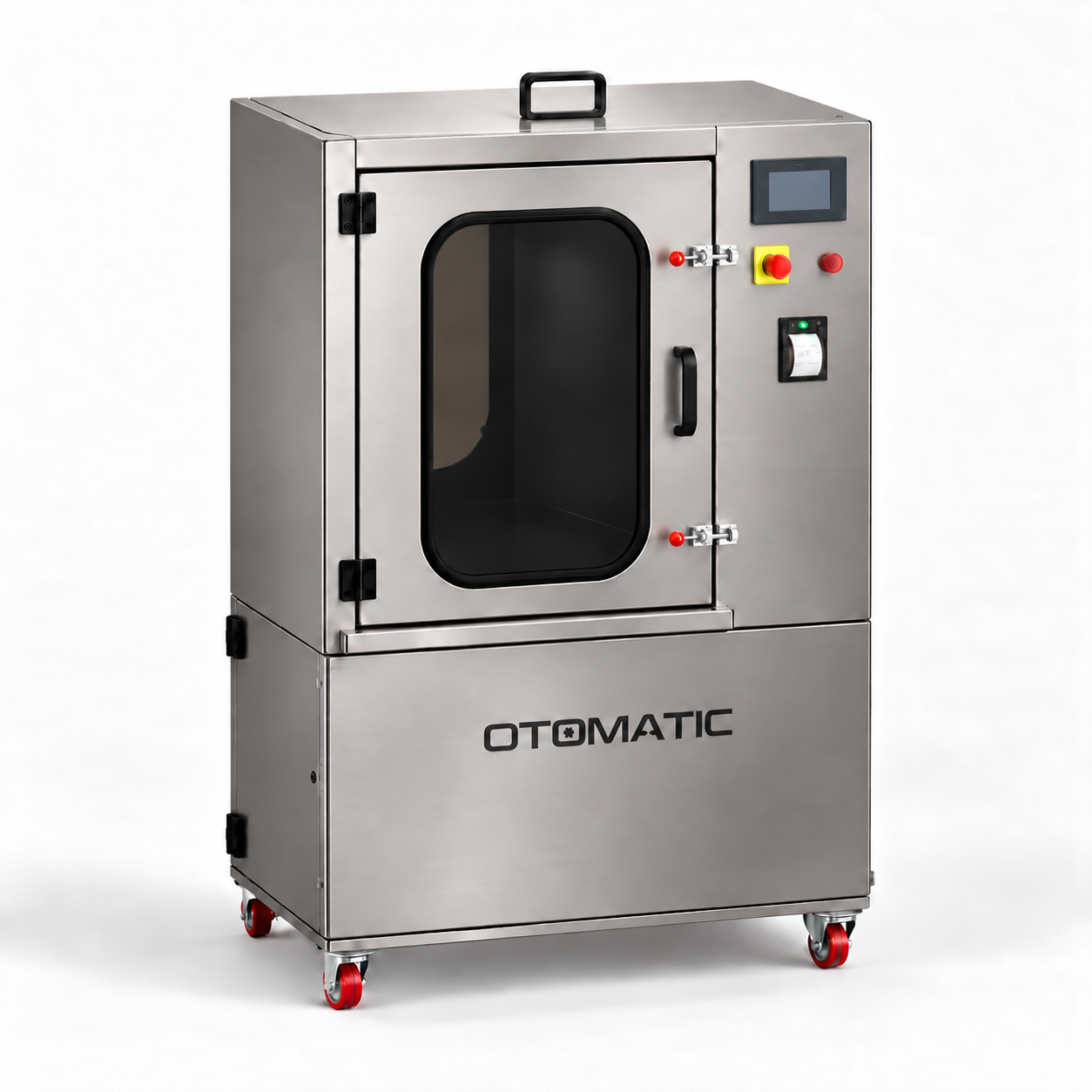

DPF | FAP Smart 230 V – a machine for cleaning DPF, FAP, and catalytic converter filters.

A professional OTOMATIC machine for cleaning DPF, FAP, and catalytic converter filters from passenger cars and light commercial vehicles. The single-phase 230 V power supply makes it easy to install the device even in workshops without access to three-phase power.

The machine combines wet cleaning, drying, and printing of cleaning effectiveness reports, supporting the performance and documentation of the service.

Key features:

• Wet cleaning – removal of contaminants from filters and catalytic converters using a cleaning fluid.
• Drying function – allows the cleaned component to be dried once the cleaning process is complete.
• Cleaning effectiveness report printer – enables the results of the service to be documented and the report to be provided to the customer.

• Closed-circuit fluid filtration – enables the fluid to be purified and reused, thereby reducing consumption.
• Set of connection adaptors – facilitates the connection of filters and catalysts to the unit.
• Stainless steel construction – ensures corrosion resistance and makes it easier to keep the machine clean.
• Power supply: 230 V.



Machine dimensions:

• Width: 1100 mm.
• Depth: 800 mm.
• Height: 1650 mm.

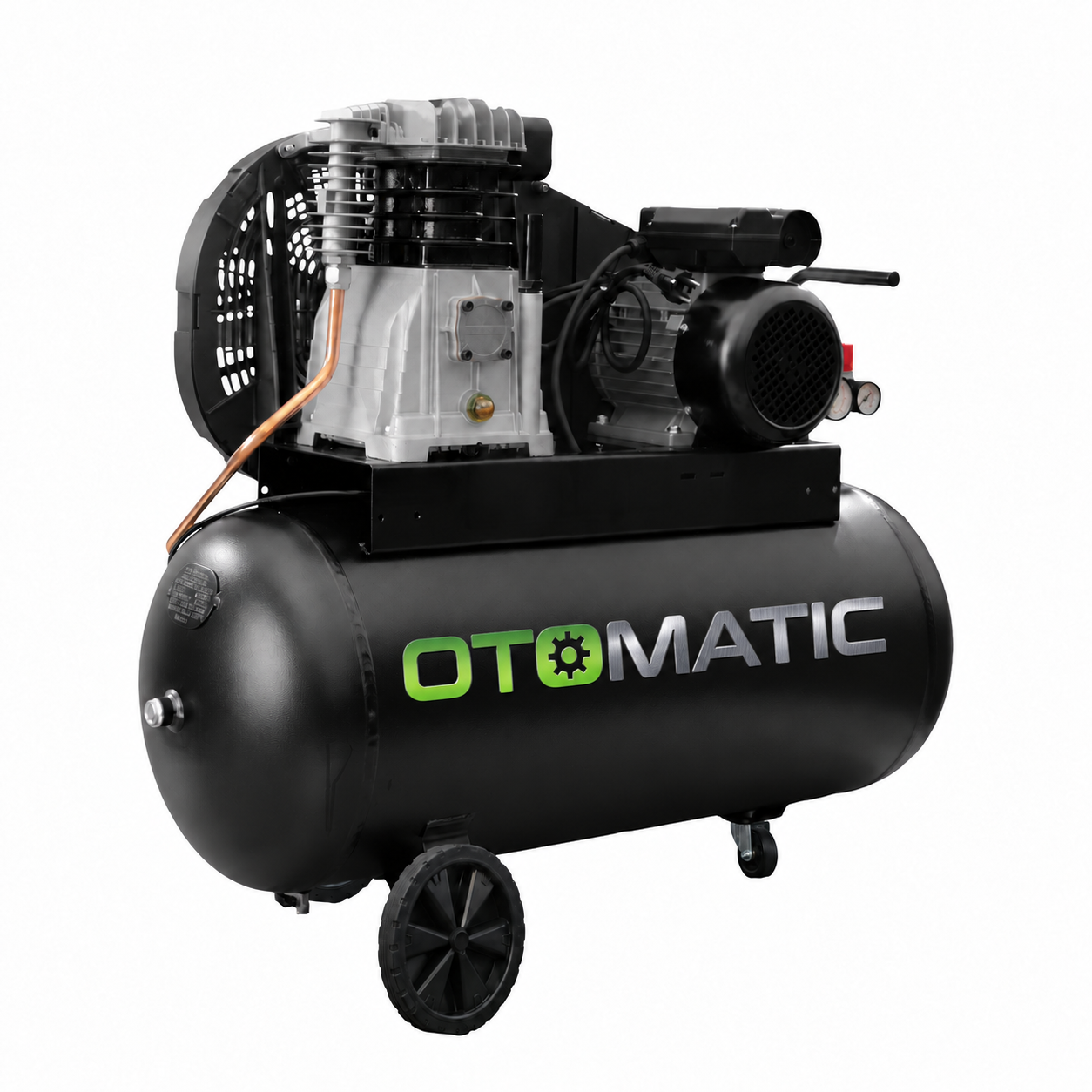

200 L Twin-Piston Air Compressor – 10 bar / 2.2 kW

A professional oil-lubricated air compressor for vehicle workshops and service centres. It supplies compressed air for pneumatic tools, blowing and inflation. The single-phase 230 V power supply allows use in workshops without three-phase power.

Key features:

• 200 L air tank – stores compressed air for workshop tasks.
• 2.2 kW / 3 HP motor – operates on single-phase 230 V power.
• Maximum pressure of 10 bar – operating pressure range of 8–10 bar.
• Estimated air delivery of 289.3 L/min – air intake capacity is 390 L/min.
• Twin-piston, single-stage pump with belt drive – operates at 1100 rpm.
• Outlet cooler – helps remove heat from the compressed air.
• Wheels and handle – make the compressor easier to move.

Technical data and dimensions:

• Power supply: 230 V / 50 Hz / single-phase.
• External dimensions: 1440 × 480 × 1130 mm (length × width × height).
• Weight: 111 kg.
• Duty cycle: 50% running time and 50% rest time in a 10-minute cycle.
